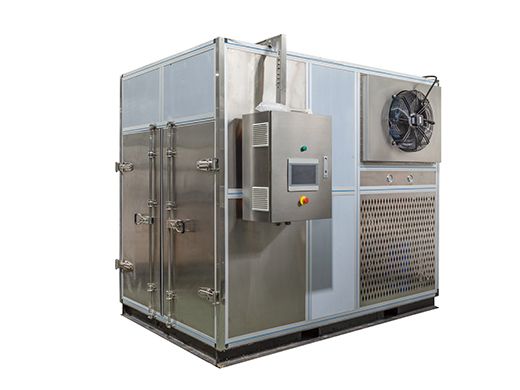

Low temperature sludge dewatering machine
Heat pump heat recovery system, 100% total heat utilization
Moisture content below 10%, reduction over 80%
online service
Tel:+86-577-86610392
Email: jinggong@188.com
|
Model |

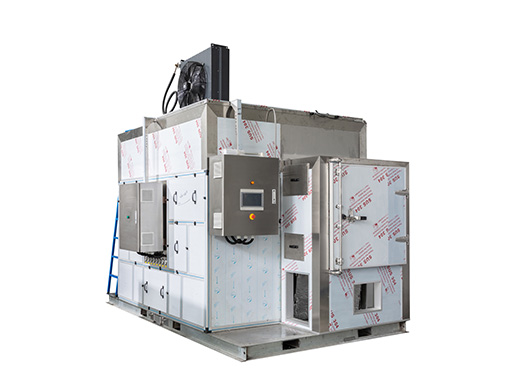

JCD1200SL/FL |

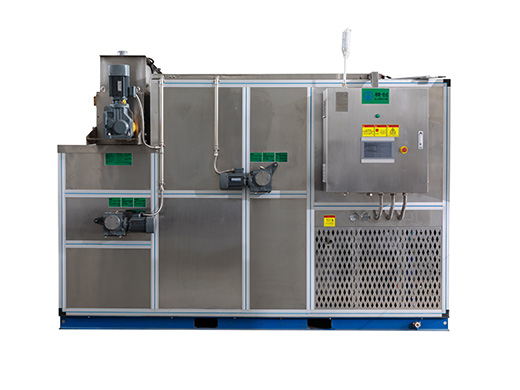

JCD2400FL |
JCD4800FL |
JCD7200FL |
JCD9600FL |
JCD10800SL |
JCD16200SL |
JCD21600SL |
JCD27000SL |
JCD32400SL |
JCD37800SL |
JCD43150SL |
JCD48600SL |
JCD54000SL |
|
Standard water removal / 24h |
1200kg |
2400 kg |
4800 kg |
7200 kg |
9600 kg |
10800kg |
16200 kg |
21600 kg |
27000 kg |
32400 kg |
37800 kg |
43200 kg |
48600 kg |
54000 kg |
|
Water removal / h |
50 kg |
100 kg |
200 kg |
300 kg |
400 kg |
450kg |
675kg |
900kg |
1125kg |
1350kg |
1575kg |
1800kg |
2025kg |
2250kg |
|
Operating power |
15kw |
27 kw |
51 kw |
75 kw |
106 kw |
105kw |
155kw |
205kw |
255kw |
305kw |
355kw |
405kw |
455kw |
505kw |
|
Heat pump host
Number of modules
|
1 set |
1 set |
2 set |
3 set |
2 set |
2 set |
3 set |
4 set |
5 set |
6 set |
7 set |
8 set |
9 set |
10 set |
|
Cooling method |
Water-cooled / air-cooled |
Air-cooled |
Air-cooled |
Air-cooled |
Air-cooled |
Water-cooled SL |
||||||||
|
Cooling water flow
Δt = 15 ℃
|
0.5m3/h See note 1 |
/ |
/ |
/ |
/ |
8.5m3/h |
12.8m3/h |
17m3/h |
21m3/h |
25.5m3/h |
30m3/h |
34m3/h |
38m3/h |
42.5m3/h |
|
The refrigerant |
R134a |
|||||||||||||
|
Power supply |
(220V\380V\440V)/3H/50Hz(60Hz) |
|||||||||||||
|
Drying temperature |
50 ～ 60 ℃ (return air) / 65 ～ 80 ℃ (supply air) |
|||||||||||||
|
Control System |
Touch screen + PLC programmable controller |
|||||||||||||
|
Application scope of wet mud |
Water content (75% -81%) (other water content is customized) |
|||||||||||||
|
Dry water |
Frequency conversion adjustment, moisture content (10% -50%) |
|||||||||||||
|
Forming method |
Cut |
|||||||||||||
|
Dimensions (L * B * H) mm |
3400 *1510 *2180 |
3910 *2350 *2480 |
6610 *2350 *2480 |
9310 *2350 *2480 |
8020 *3150 *3250 |
8020 *3150 *3250 |
11270 *3150 *3250 |
14520 *3150 *3250 |
17770 *3110 *3200 |
20920 *3150 *3250 |
24570 *3150 *3250 |
27520 *3150 *3250 |
30770 *3150 *3250 |
34020 *3150 *3250 |
|
Structure type |
Outfit |
Outfit |
Assembly |
Assembly |
Assembly |
Assembly |
Assembly |
Assembly |
Assembly |
Assembly |
Assembly |
Assembly |
Assembly |
Assembly |
|
Weight |
2Ton |
3.2Ton |
5.7Ton |
7.8Ton |
9Ton |
9Ton |
12.3Ton |
15.5Ton |
17.7Ton |
21.9Ton |
25.1Ton |
28.3Ton |
31.5Ton |
34.7Ton |
Note 1: JCD1200FL (air-cooled) model does not require cooling water. 2: Product updates will cause changes in parameters, please contact technology for details. 3: For details of customized models, please communicate with technology.
Features
Heat pump heat recovery system, 100% total heat utilization
Moisture content below 10%, reduction over 80%
Ultra-low operating cost per ton of 180-degree electricity
50 degrees low temperature operation, safer
0 emissions, no odorous emissions, condensate can be discharged straight, more hygienic without dust
